w1

小組組員

  • 40823123:網站 倉儲
  • 40823136:網站 倉儲
  • 任務分工

    我負責的部分是畫圖跟程式模擬,-而我隊友負責構想機構跟畫圖

    w2

    Down arrow

    標題

    前陣子看文藝復興的影片,看到投石車,於是我與組員討論出來的題目是投石車

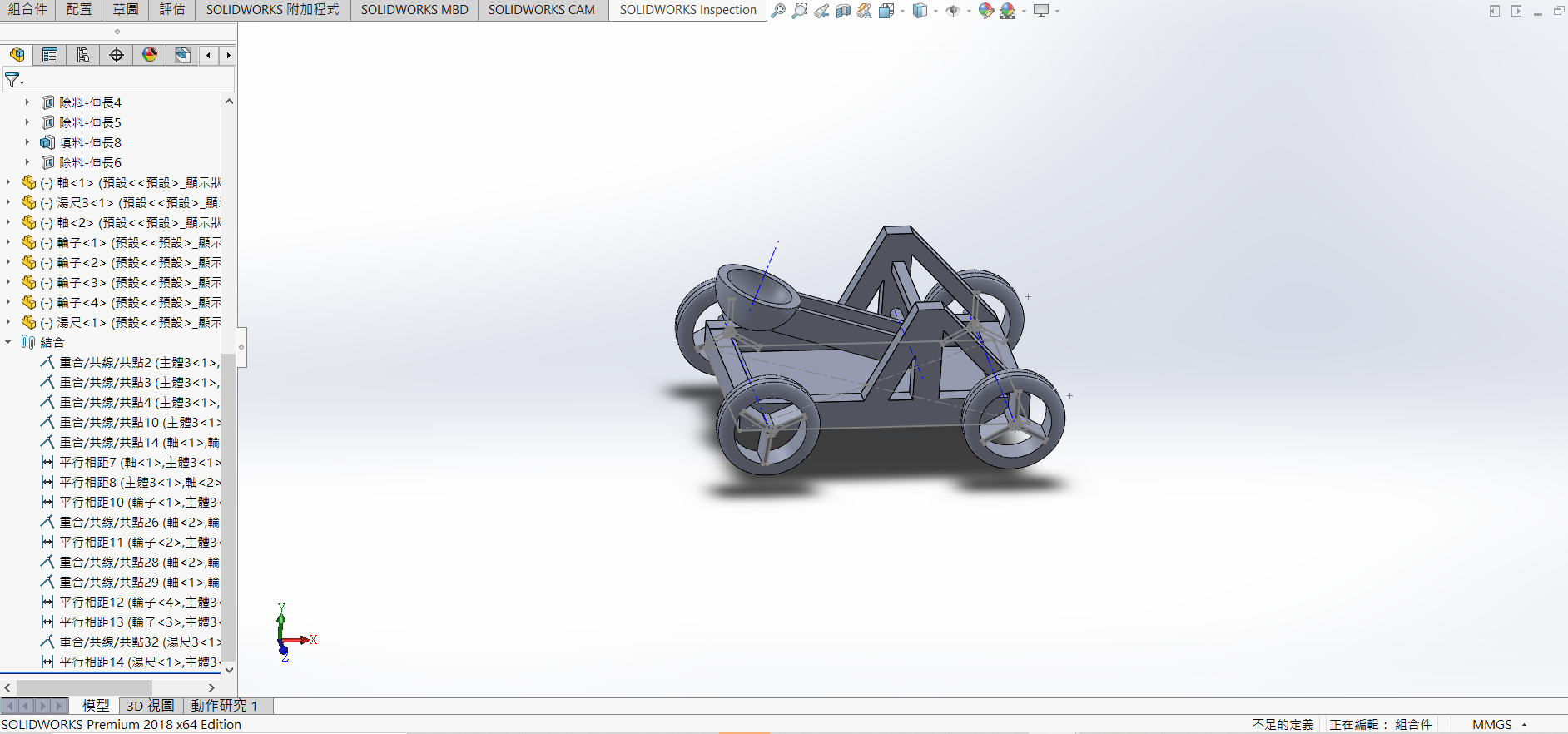

    組合圖

    我們先將初步畫完的圖組合起來丟到coppeliasim裡面看哪裡需要修改

    圖檔影片及資料

    STL檔

    w3

    Down arrow

    coppeliasim第一次測試

    第一次測試發現轉動時輪胎軸心會卡死所以在第二版在各個輪子加裝馬達

    coppeliasim第二次測試

    在第二版加裝4個馬達模擬時又發現會傾斜45度,於是在跟隊友討論如何修改.

    coppeliasim第3次測試

    而第三次測試終於成功,我發先會傾斜有兩個原因

  • 後輪軸心沒拘束倒置往下沉
  • 輪子的質量沒給導致會呈現45度角在運動
  • w4

    Down arrow

    產品設計報告
